Zxellium pedal enables maximum power transfer with an exclusive float system that perfectly respects the riders body. The iClic technology and its carbon spring allow the easiest step in and out. The carbon body and titanium axle make the Zxellium SLR Ti one of the lightest options.

Features:

– Mechanism: the easiest engagement
– Spring: carbon flexion blade
– Contact area: oversize 700 mm²
– BioPosition: shoe-pedal distance, only 13.5 mm
– Body material: carbon
– Axle material: titanium, hollow
– Bearing: sealed cartridge bearing

Shoe – Pedal interface:

– Q Factor: lateral freedom +/- 2.5 mm
– Feel adjustment: 3 positions
– Angular freedom: +/- 5°
– Release angle: 15°

Highest power transfer and ease of use:

– 700 mm² platform for optimal energy transfer
– 13.5 mm pedal height for the most efficient pedal strokes (best combination with Mavic footwear)

Greatest respect of riders biomechanics:

– 10° angular float
– 2.5 mm lateral float
– 3 position float sensation adjustment

One of the lightest pedal systems:

– Light hollow titanium axle
– Carbon body

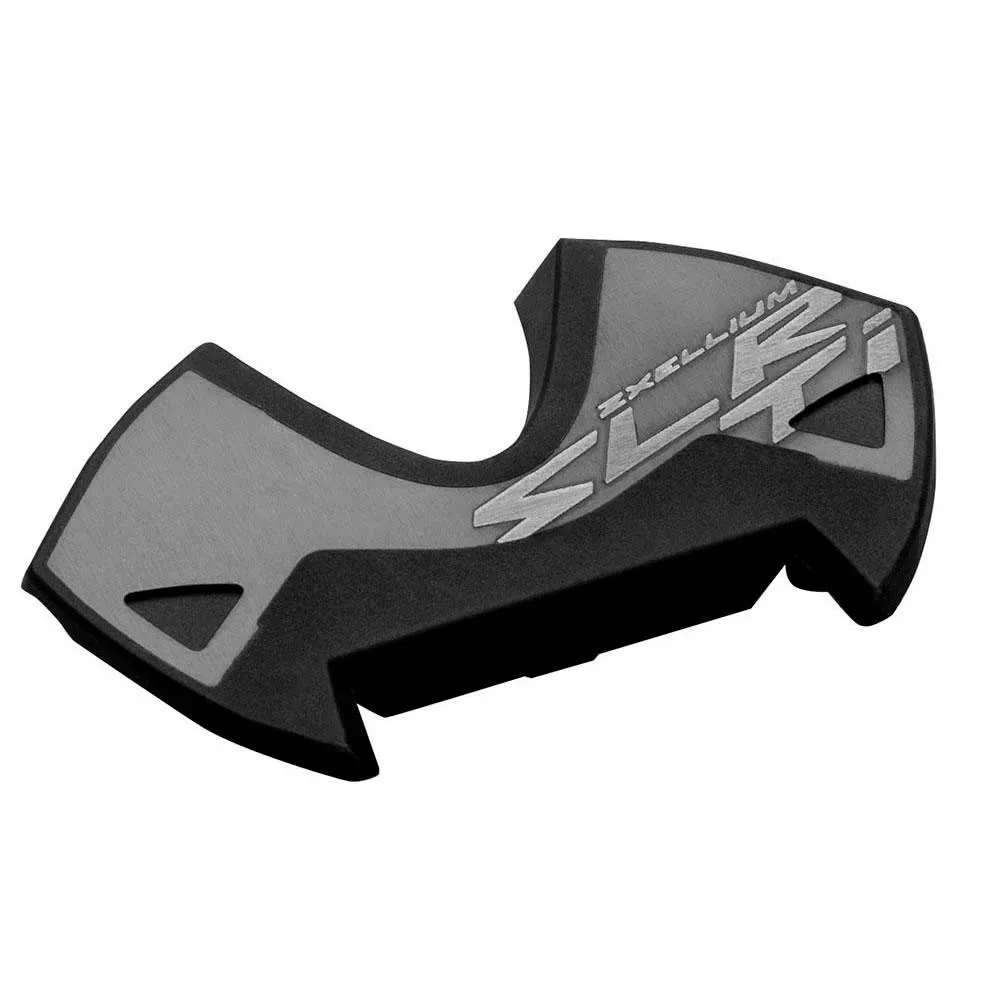

– Aluminum friction plate (user replaceable)

Specifications:

– Weight : 155 grams (Pair)

Technology:

MAVIC PEDALS: More than just light

For each pedal stroke, the pedal need to come around again – this is why our pedals are so light. Due to our unique technologies, being lightweight is only half of the discussion. All of our pedals, from top to bottom, consider biomechanics, ease of clip-in and out, platforms size and low stack height to help you ride with less effort.

KSYRIUM REINVENTED: Wider, Carbon, disc and a new playground

Effortless engagement:

The retention system remains open when the cleat is not engaged. When engaging, the pressure effort is reduced to minimum. When releasing the cleat, the retention system automatically locks back in the open position.

-Effortless engagement
-Intuitive cleat in
-Fast engagement in all conditions

Extra wide contact area – 700 mm²:

Extra wide cleat/pedal support area and cleat/shoe contact area, thanks to oversized pedal body plate. The body plate is user replaceable to maintain a perfect foot support over time.

-Improved foot stability on the pedal
-Increased power transfer

Minimum stack height:

Minimum distance between the feet and the axle allows rounder pedal strokes and negates the effect of tilting moment.

-More direct power transfer
-Less muscle fatigue

Lateral and angular float:

Mavic pedals offer an angular float of 10° (5° in each direction), but also go further by being the only pedals also offering a self lateral adjustment of the foot on the pedal (Q factor). Users can adjust the feel of float, from free to locked in.

-Natural hip / knee / ankle alignment reduces chance of injury
-Ease of cleat positioning

Feel adjustment:

Adjustment of the lateral and angular float feeling. Easy movement or more friction, the pedal will fit every riders preference.

-3 positions, easy to adjust
-Always respectful of the bodys bio-mechanics
-Adaptable to personal feelings
